Crane Duty Classification Explained: ISO/FEM, U, Q, M, S Ratings & %ED
When purchasing a new overhead crane, one of the most important technical specifications is its duty classification. While the crane’s Safe Working Load (SWL) tells you how much it can lift, the duty classification determines how often it can lift, how hard it can work, and how long it is expected to last.
Many people mistakenly assume that two 10-tonne cranes will perform identically. A 10-tonne crane used a few times each day is completely different from a 10-tonne crane operating continuously on a production line. Although both have the same lifting capacity, they require different components, different design considerations and significantly different budgets.
Understanding duty classification helps ensure the crane is correctly specified, avoids premature wear, reduces maintenance costs and complies with recognised engineering standards.
What is Duty Classification?
Duty classification is a method used to determine how demanding a crane’s working life will be. It considers factors such as how many lifting cycles the crane performs, how heavy the loads are, how often maximum loads are lifted, and the crane’s expected lifetime The operating environment
Rather than simply selecting a crane based on lifting capacity, manufacturers classify cranes according to how intensively they will be used.
Why is Duty Classification Important?

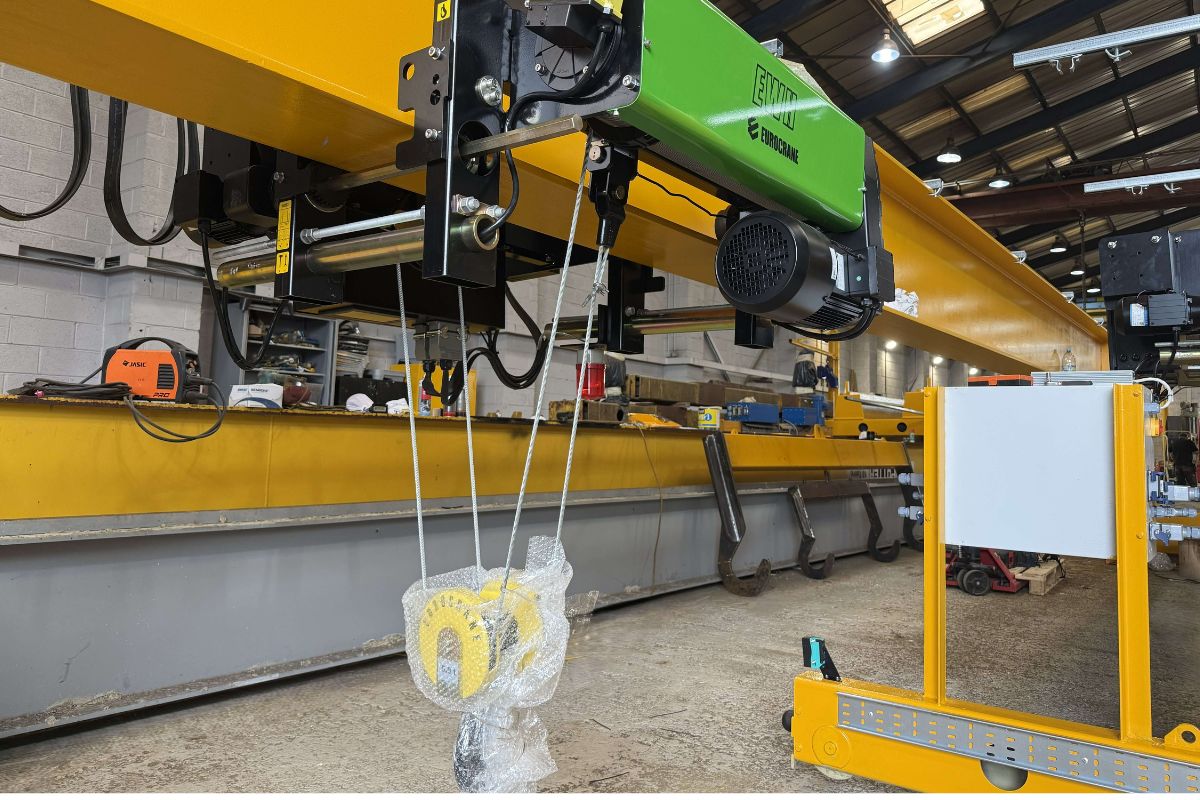

Selecting the correct duty classification affects almost every part of the crane. A higher duty classification crane may require larger gearboxes, more robust motors, higher specification brakes, better bearings, stronger wheels, more durable wire ropes, improved electrical components, and more frequent servicing. Although these components increase the purchase price, they are designed to withstand many millions more lifting cycles.
On the other hand, choosing a crane with too low a duty classification can lead to premature component wear, increased breakdowns, more expensive maintenance, reduced reliability, and shortened crane lifespan.
The Legal Framework: UK and European Law
In the UK and Europe, crane design is legally governed by strict standards. Your lifting equipment must comply with BS EN 13001 (for overall structural design) and ISO 4301-1 / FEM 1.001 (for lifting mechanisms). These will both be expanded on below.
Failing to install a crane rated for its actual working environment directly impacts your mandatory safety compliance. Cranes operating beyond their design limit run a high risk of failing their regular LOLER (Lifting Operations and Lifting Equipment Regulations) inspections and provide unnecessary risks to operators.
How Duty Classifications Are Calculated
The overarching duty group of a crane mechanism is called its M-Rating (M1 to M8). This rating is calculated by combining two distinct factors the U-Rating (Frequency) and the Q-Rating (Load Severity). In most cases for standard overhead cranes, M4-M5 is the typical M-rating.
What is a U-Rating? (Usage Frequency)
The U-Rating measures how often the crane operates. It categorises the total number of lifting cycles the crane is expected to perform across its entire design life. The U-ratings are as follows: U0 to U3 (Infrequent): Used occasionally for maintenance or standby tasks. U4 to U5 (Moderate): Standard use in warehouses or light assembly workshops. U6 to U7 (Heavy Use): Constant operation throughout daily factory shifts. U8 to U9 (Continuous): Round-the-clock, non-stop severe industrial work.
What is a Q-Rating? (Load Weight)
The Q-Rating measures how heavy the loads are relative to the crane’s maximum capacity (SWL). The Q-ratings are as follows: Q1 (light loads): The crane rarely lifts its maximum capacity; it mostly moves light loads. Q2 (moderate loads): Regularly lifts medium loads, occasionally hitting maximum capacity. Q3 (heavy loads): Frequently lifts loads close to the maximum safe working limit. Q4 (maximum loads): Constantly lifts loads at or very near its maximum SWL.
The M-Rating (U + Q = M)
By crossing your frequency (U) with your load severity (Q), you find your required M-Rating.
Note: While international standards technically define ultra-light M1 and M2 classes, Harold Potter and most leading industrial suppliers start standard ranges at M3.
| Load Spectrum Class (Q) | Infrequent Use (U0 to U3) | Moderate Use (U4 to U5) | Heavy Use (U6 to U7) | Continuous Use (U8 to U9) |
|---|---|---|---|---|
| Q1 – Light Loads (Rarely lifts full capacity) | M1 to M3 | M4 | M5 | M6 |
| Q2 – Moderate Loads (Sometimes lifts full capacity) | M1 to M3 | M5 | M6 | M7 |
| Q3 – Heavy Loads (Frequently lifts full capacity) | M1 to M4 | M6 | M7 | M8 |
| Q4 – Very Heavy (Consistently lifts maximum capacity) | M2 to M5 | M7 | M8 | M8 |
Table 1 – Identifying the M-Rating
FEM Classification vs ISO Classification
FEM stands for Fédération Européenne de la Manutention (the European Materials Handling Federation), and ISO stands for the International Organisation for Standardisation. Both organisations have created classification ratings for cranes dependent duty cycles, workload, and the lifespan of the crane. The main difference is age and origin: FEM is the traditional European standard heavily favoured by classic manufacturers like Demag or Konecranes, while ISO is the universally adopted global framework. The ratings can be corresponded to one another. For example, as seen in the table below, FEM 1Am is identical to ISO M4.
| FEM Classification | ISO Equivalent Rating | Typical Duty Level |
|---|---|---|
| FEM 1Dm | M1 | Standby / Extremely Light |
| FEM 1Cm | M2 | Very Light / Maintenance |
| FEM 1Bm | M3 | Light Workshop Duty |
| FEM 1Am | M4 | Standard General Engineering |
| FEM 2m | M5 | Medium / Heavy Production |
| FEM 3m | M6 | Heavy Duty / Continuous Fabrication |
| FEM 4m | M7 | Severe Duty & Steel Yards |
| FEM 5m | M8 | Continuous Maximum Duty |
Table 2 – FEM Classification & ISO Equivalent
What Does an M-Rating Actually Mean?
The M-Rating only refers to the mechanical components of the crane. Components such as hoists, brakes, wire ropes, motors, gearboxes, and wheels are all part of the M-Rating. A higher M-Rating means these components are designed to withstand significantly more lifting cycles through their lifespan.
It’s important to clarify that a higher M-Rating DOES NOT mean the crane can lift more and has a higher Safe Working Load. For example, a 5T M3 rated crane and a 5T M6 rated crane both can lift the same amount, but the M6 crane has components that are designed for more frequent use and a longer lifespan.
The Electrical Counterpart: What is ED%?
ED% (Cyclic Duration Factor) measures the exact percentage of time a crane’s motor can actively run under load within a standard 10-minute period before it must stop to rest and cool down. For example, a crane with an M5 rating typically features a 40% ED motor, meaning it can safely operate for 4 minutes but must rest for 6 minutes to prevent overheating.
| ISO Rating | FEM Rating | Motor Duty Factor (% ED) | Max Work Time (Per 10-Mins) | Min Rest Time (Per 10-Mins) |
|---|---|---|---|---|
| M3 | 1Bm | 25% ED | 2.5 mins | 7.5 mins |
| M4 | 1Am | 30% ED | 3.0 mins | 7.0 mins |
| M5 | 2m | 40% ED | 4.0 mins | 6.0 mins |
| M6 | 3m | 50% ED | 5.0 mins | 5.0 mins |
| M7 / M8 | 4m / 5m | 60% to 100% ED | 6.0 to 10.0 mins | 4.0 to 0 mins |
Table 3 – The ISO, FEM, and Motor Duty Factor (%ED) table – starts at ISO rating M3*
What is an S-Rating? (Steel Structure Rating/Classification)
While the M-Rating describes the crane’s mechanical parts, the S-Rating applies to the steel structure of the crane.
An S-rating ranges from S0 to S9. It outlines exactly how much structural fatigue and stress the crane’s main bridge girders, end carriages, and steelwork can safely withstand over their operational lifespan. It follows the same pattern as the other ratings whereby S0 is for very light and non-frequent lifting, and S9 is for extremely heavy-duty loads with continuous lifting.
Does a Higher Duty Classification Cost More?
Yes. A higher duty classification costs more in upfront costs, but if you identify the correct duty classification for your business, it will save you money long-term.
As you progress through from standard cranes (M4) up to higher duty cranes (M6+), it’s very likely the crane will need stronger mechanical components and a stronger steel structure to be able to withstand the added frequency of lifting.
Choosing the Right Duty Classification
Selecting the perfect duty classification comes down to a balance: under-specifying creates severe safety hazards and costly breakdowns, while over-specifying means you are paying for an oversized steel structure and heavy machinery that your facility simply doesn’t need.
To determine exactly what classification your project requires, you should confirm these 3 questions below:
What is the Safe Working Load?
What is the absolute maximum weight the crane will ever need to lift?
How often will the crane be lifting? (Usage Frequency – U rating)
Over a standard shift, how many total lift cycles will the crane perform? For example, is the crane used a few times a week, or 30 times an hour on a production line?
What is the typical weight distribution? (Load Weight – Q rating)
When the crane is operating, are most of your lifts at the absolute maximum capacity, or are you usually lifting much lighter loads?
You can refer to Table 1, Table 2, and Table 3 above to align your business’ operations to its correct duty classification. If you’re unsure contact our team today and we will specify the correct crane for your business.
